Have you ever stepped into a modular building and felt unexpectedly cramped? Buyers evaluating a folding container house often miscalculate the true space available. They confuse external shipping footprints with actual livable interior dimensions. This common mistake leads to delayed projects, compromised layouts, and uncomfortably low ceilings. You must understand how structural modifications inevitably shrink your final floor plan. In this guide, we clarify the exact dimensional standards for standard, high-cube, and expandable container models. We isolate the direct impact of structural insulation, folding mechanisms, and local compliance on your final usable space. You will learn how to accurately project your living area from the inside out. We skip the marketing fluff. Instead, we provide an objective, data-driven, and implementation-focused baseline to ensure your project planning remains realistic and highly accurate.
Standard vs. High-Cube: Upgrading to a High-Cube (+12 inches vertical) is practically mandatory for residential use to offset ceiling insulation thickness.
Folding Expansion Ratios: Expandable models can triple their footprint from a flat-pack transit size to deployed residential dimensions.
The Insulation Penalty: Expect standard exterior footprints to lose roughly 4–6 inches on all sides to structural framing and thermal bridging materials.
Site Feasibility: Final sizing decisions must account for local zoning limits, delivery crane clearances, and standard 12-point concrete foundation configurations.
Global shipping logistics dictate rigid external dimensions. Manufacturers build every unit to fit precisely on cargo ships, trains, and flatbed trucks. You must use these ISO baselines as your starting point before any modifications occur. They represent the absolute maximum outer envelope.

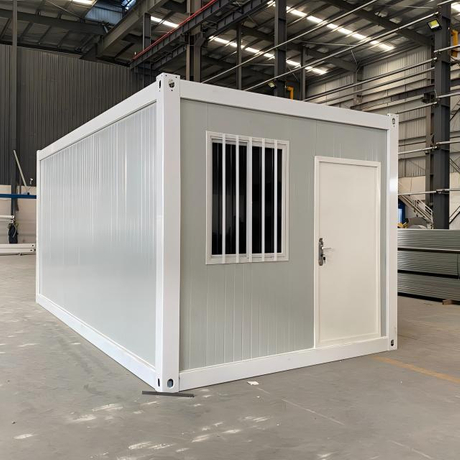

The 20-foot unit represents the most compact modular option on the market. It offers a highly efficient spatial envelope.
External metric baselines measure approximately 5800mm in length, 2800mm in width, and 2896mm in height for high-cube variants.
This physical volume yields a base footprint of about 160 square feet on the exterior.
They work perfectly for Accessory Dwelling Units (ADUs), tiny homes, or single-occupancy remote cabins.
Builders love this size for tight urban backyards. It easily navigates narrow streets. You can place it in locations where traditional construction fails.
For larger residential projects, the 40-foot unit doubles the structural length.
External metric baselines span roughly 11600mm (L) x 2800mm (W) x 2896mm (H).
The base footprint expands to roughly 320 square feet on the exterior.
They serve best for multi-room studio layouts, temporary employee housing, or multi-module combinations.
Many architects join multiple 40-foot modules together. They remove interior walls to create sprawling open-concept living rooms.
Why do professionals insist on high-cube models? Standard containers stand 8 feet 6 inches tall. High-cube containers add an extra 12 inches. They reach exactly 9 feet 6 inches in height. This 9’6” High-Cube remains the undisputed industry standard for residential conversions. You absolutely need this extra vertical space. Once you install floor framing, thick insulation, and ceiling panels, standard models feel extremely oppressive. The high-cube ensures you maintain a comfortable, code-compliant living ceiling height. It drastically improves indoor air circulation and psychological comfort.
Expandable designs completely change the spatial equation. We often refer to them as "3-in-1" or butterfly folding modular models. These clever engineering designs distinguish strictly between shipping volume and final living area. They fold inward for dense transport. They fold outward upon site delivery. Hinges run along the top and bottom chassis. Heavy-duty gas struts or manual winches allow workers to lower the side walls securely.
During transport, the structure remains incredibly compact. A typical closed footprint for flat-pack transport measures 11800mm x 2250mm x 2530mm. This narrow profile matters immensely for logistics. It strictly allows for standard truck transport. You easily avoid the heavy fees and logistical nightmares of securing specialized "wide load" highway permits. The folded unit travels across the country just like ordinary commercial freight.
Once the unit arrives, its true size emerges. The deployed footprint dramatically expands. It often reaches 11800mm x 6300mm x 2530mm. The central floor space multiplies up to three times. This horizontal expansion yields roughly 74 square meters. That translates to about 796 square feet of highly usable living space. You instantly transform a narrow shipping box into a spacious family residence.
Many buyers express skepticism around foldable joints. Can a house with moving parts remain durable? Modern expandable models rely on continuous 3mm galvanized steel frames. They do not warp or bend under structural stress. Manufacturers also apply robust waterproof sealing at all pop-out seams. Thick rubber gaskets compress tightly when deployed. When properly installed, these weather-tight joints rival traditional static builds in extreme weather durability.

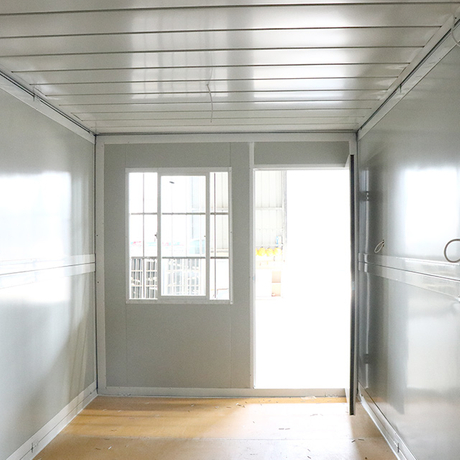

You must immediately shift your focus from exterior footprints to actual livable volume. To make steel boxes habitable, you have to add essential thermal modifications. Steel inherently conducts heat and cold. These thermal modifications inevitably consume valuable interior space. We call this unavoidable reduction the "insulation penalty."
Insulation requires physical depth. Builders typically factor in standard 50mm, 75mm, or 100mm sandwich panels. These structural panels might use EPS, Rockwool, or PU core materials. When you attach them to the interior walls, you face a noticeable loss of internal width and length. Expect to lose roughly 4 to 6 inches per wall. A 320-square-foot exterior quickly shrinks closer to 280 square feet of actual floor space. You must plan your furniture layouts using the final internal metrics.
Vertical space suffers a similar fate. If you use standard units, your ceiling drops significantly. After adding necessary floor leveling and overhead insulation, standard models drop to a tight 7-foot or 7-foot-8-inch interior clearance. High-cubes completely solve this problem. They maintain a much more comfortable, code-compliant 8-foot to 8-foot-10-inch clearance. You desperately need this buffer. It easily accommodates modern HVAC ducting. It also allows for thicker roof insulation. Thick roof insulation proves vital for hitting energy-efficient U-values below 0.30 W/m²K.
To combat this insulation penalty, smart spatial design becomes critical. You should ruthlessly optimize your utility zones. Structural engineers recommend back-to-back plumbing configurations. By placing the kitchen and bathroom modules against a shared interior wall, you minimize internal utility footprints. This strategic clustering preserves your valuable open living space.
Dimension Type | Exterior Measurement | Expected Insulation Loss | Final Interior Measurement |
|---|---|---|---|
Standard Wall Width | 8 ft (96 inches) | ~8-12 inches total | ~7 ft to 7 ft 4 inches |
Standard Height (8'6") | 8 ft 6 inches | ~10-14 inches total | ~7 ft to 7 ft 8 inches |
High-Cube Height (9'6") | 9 ft 6 inches | ~10-14 inches total | ~8 ft to 8 ft 10 inches |
Sizing isn't just about the structure itself. It is also about site access and deployment mechanics. A perfectly sized container home serves no purpose if you cannot physically install it on your land.
Unlike traditional continuous perimeter foundations, folding models require highly specific ground support. They typically demand precision leveling across a 12-point concrete pad configuration. You must map these 12 points perfectly to align with the heavy steel corner castings. Concrete piers work exceptionally well. They elevate the floor frame off the dirt. This elevation promotes air circulation and effectively prevents lower frame rust.
You must calculate the physical space needed for a flatbed truck drop-off. The delivery truck needs a wide, unobstructed turning radius to back into the plot safely. Furthermore, the deployment requires significant overhead clearance. A mobile crane must lift the heavy center roof and safely expand the heavy folding sides. Low-hanging tree branches or overhead power lines can stop an installation immediately. You must measure vertical clearances before finalizing delivery dates.
Suppliers frequently advertise rapid deployment speeds. We can verify these claims, but they strictly require proper site preparation. A 40-foot expandable modular home generally requires a skilled 6-person crew. This trained team works for 1 to 2 days to achieve 90% factory-to-site completion. If your foundation sits unlevel, this rapid timeline easily doubles. Proper groundwork dictates your final assembly speed.
Dimensions directly impact bottom-line project costs and local permitting approvals. You need a clear evaluation framework to avoid surprise expenses. A larger footprint demands more material, heavier cranes, and stricter municipal scrutiny.
You must distinguish clearly between bare shell prices and turnkey finishes. This means strictly separating the initial factory cost from the final landed cost.
A base 40-foot expandable unit may cost $18,000 to $25,000 USD at the factory.
However, customs, cross-country delivery fees, and site preparation add up rapidly.
These mandatory logistical additions can push the finalized budget to $40,000 or even $80,000+.
Do not budget strictly based on the manufacturer's initial invoice. Always calculate the final, fully installed amount to ensure adequate project funding.
Navigating local zoning laws requires strict attention to expanded size. Does the local jurisdiction recognize a folded modular unit as an ADU, a temporary structure, or a permanent dwelling? Every city answers this legal question differently.
Furthermore, specific deployed dimensions dictate wind and snow load sizing. You might need custom roof pitch additions to handle heavy regional snowfall. Alternatively, local building inspectors might demand enhanced corner castings to meet specific US or AS building codes. If you build too large without engineered structural approvals, you risk failing your final occupancy inspection.
Selecting the correct standard dimension of a folding modular house requires careful backward planning. You must work backward from interior livability and local compliance restrictions. Do not base your entire architectural project strictly on exterior shipping specs. The insulation penalty and folding mechanics alter everything.
Keep these action-oriented next steps in mind before signing a contract:
Request exact floor plan dimensional drawings directly from your manufacturer.
Ensure these detailed drawings feature accurate post-insulation interior measurements.
Consult a local site prep engineer to verify mobile crane access and foundation pad layouts.
Verify your local zoning laws regarding minimum square footage for permanent dwellings.
A: You typically lose roughly 4 to 6 inches along the perimeter walls. Builders must install framing and sandwich panels (like EPS or PU) to meet thermal standards. Additionally, expect a noticeable ceiling drop. Floor leveling and roof insulation combine to consume 10 to 14 inches of vertical space.
A: Yes, we strongly recommend it. Standard models only provide about 7 feet of interior clearance after insulation. A High-Cube adds 12 essential inches of height. This upgrade easily accommodates modern HVAC ducting, thicker roof insulation, and meets building code minimums for comfortable residential ceiling heights.
A: The actual on-site expansion is incredibly fast. Most units arrive 90% pre-assembled from the factory. Once on your properly leveled foundation, a skilled 6-person crew typically completes the unfolding, sealing, and final installation in just 1 to 2 days.
A: Standard shipping container door openings generally measure 7 feet 6 inches in height and 8 feet in width. However, residential builds rarely use these steel doors. Most buyers upgrade to optional expanded multi-slide glass doors and pre-fitted double-glazed windows, which maximize natural light and interior views.
