Modular design: All parts are prefabricated in the factory and only require simple assembly on site. The main frame is made of galvanized steel plate, which is made by sheet metal technology and laser engraving. The bottom frame is made of 4×4cm galvanized square tube laser welding and grinding. The surface uses electrostatic spray paint technology. The surrounding wall panels and the top are assembled with high-density flame-retardant foam boards. The toilet floor uses modular artificial marble.
Basic sanitary facilities: It can be configured according to the needs of different scenarios. It is conventionally equipped with toilets/squatting pits, wash basins/wash cabinets, makeup mirrors, shower facilities, etc., and water and electricity materials are fully equipped.
A: Product raw materials and process advantages
1. The frame is formed in one piece by sheet metal technology, which is more beautiful in shape; laser engraving and cutting, precise size, and reduced error.
2. Through the high-temperature electrostatic spray paint process, it is environmentally friendly and energy-saving, with full colors, good gloss, smooth surface, not easy to wear, and durable.
3. The bottom square tube is made by laser welding and grinding, with highly concentrated welding energy, fast welding speed and high production efficiency; high welding precision and small spots to ensure aesthetics; good weld quality, improve the strength and toughness of the weld, and ensure product quality. The grinding process is required for the welding points to ensure the smoothness of the surface and facilitate the flatness of the next painting process.
4. The flame-retardant foam wall panels are used, with excellent fire resistance, good thermal insulation effect, light weight, easy to carry and install, and sound insulation.
5. The floor is made of artificial marble. Compared with traditional aluminum plates and floor leathers, marble floors have better anti-slip properties, especially in humid environments. It can also ensure a certain degree of safety, and the texture is relatively hard and has a long service life. There are rich colors to choose from. The floor is self-weighted, which increases the stability of the box and has a high safety factor.
B: Product structure design and installation advantages
1. Prefab toilet adopts a modular design, which is simple and convenient to install. It can be put into use in a short time, saving time and labor costs. It is flexible in mobility and is widely used in scenes such as construction sites, emergency rescue and commercial activities.
2.. Prefab toilet can be shipped in parts or as a whole. Compared with traditional integral toilets, it has low transportation costs and a wide range of options.
3. The sewage outlet has been pre-buried in a dark box before leaving the factory. When the parts arrive at the site, they can be used as long as they are connected. The pipeline direction is designed reasonably, and the pipeline diameter meets the sewage discharge requirements to ensure the drainage flow rate and smoothness.

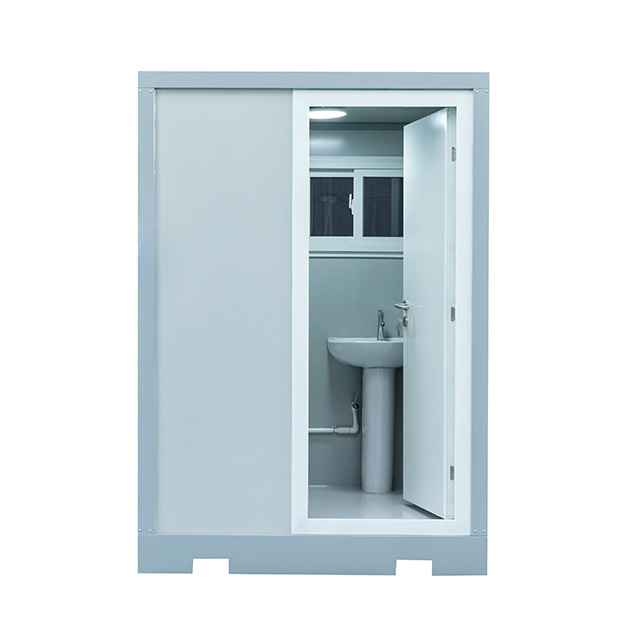

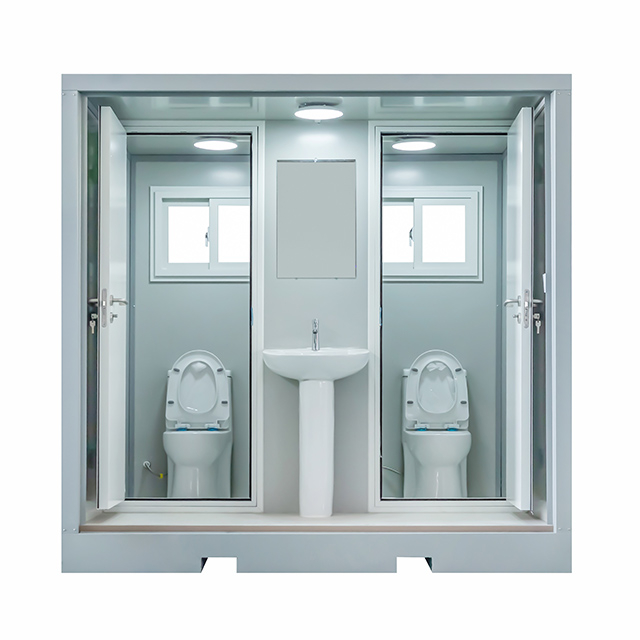

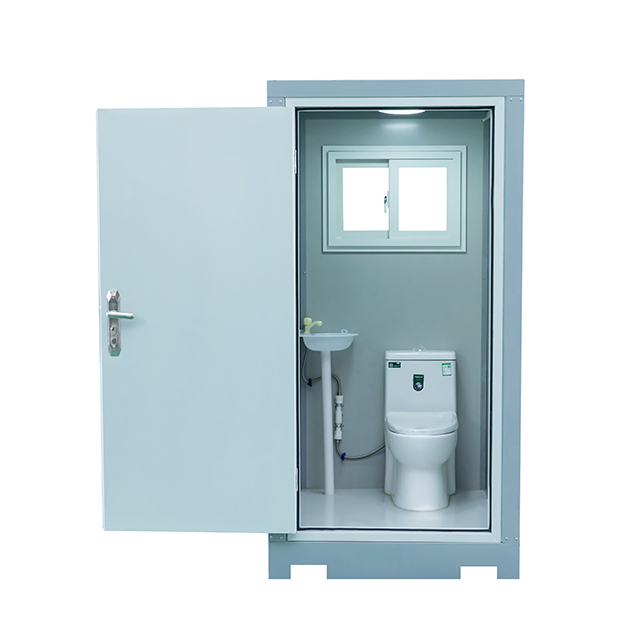

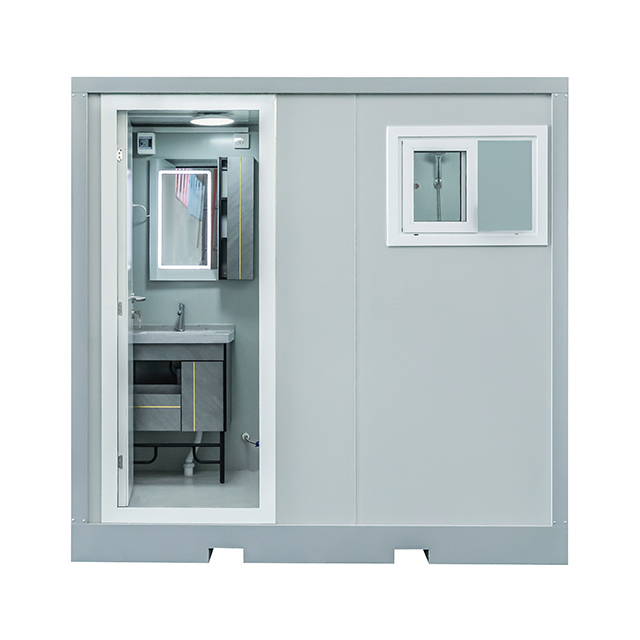

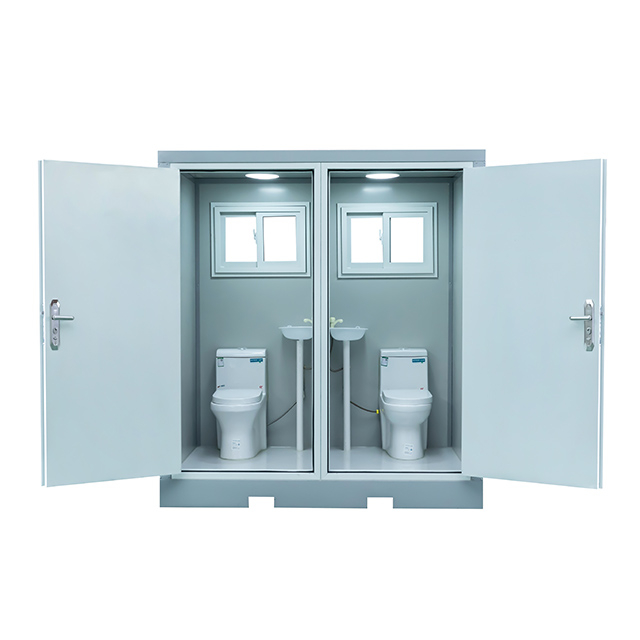

4. The product has diversified functions and integrates multiple functions to meet the diverse needs of different groups of people. Among them, the single-body model is highly flexible and easy to move, with high cost performance and a wide range of application scenarios; the single-body enlarged model has a large space and can add multiple functional scenarios. It can be integrated with a toilet or a conventional washing machine can be placed without a shower. The double-body model can be divided into men and women to ensure privacy; the lobby model uses a public washing area, and the internal space of the toilet is larger; the dry and wet separation model is divided into a dry area and a wet area, which can be used at the same time to increase space utilization; the dry area ground is kept dry to improve safety.
5. The style, specifications, color and material of Prefab toilet can be customized.
Construction sites, factories, tourist attractions, outdoor activities, emergency rescue, commercial activities, large-scale entertainment events, film and television shooting venues, rural dry toilet transformation, courtyard civil use, farms, and breeding farms.
