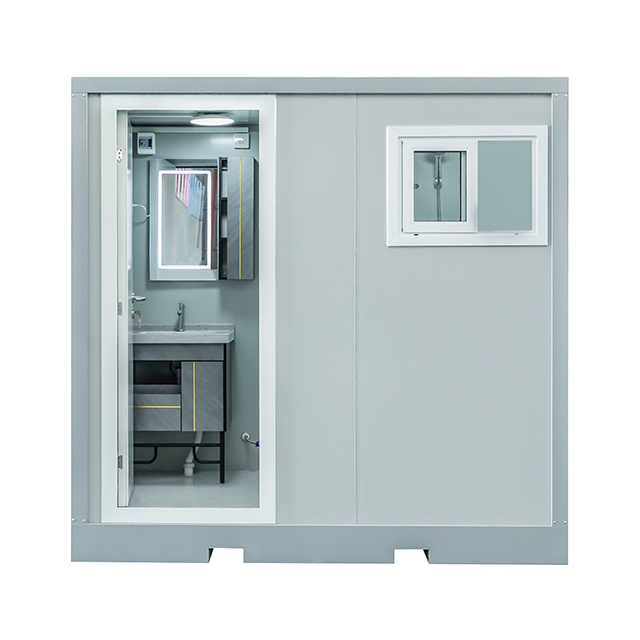

The Dry Wet Separation Prefab Toilet is a prefabricated sanitary facility designed for efficient and convenient use. It features an overall dimension of 2270×1505×2255mm (length×width×height) and internal dimensions of 2120×1355×2000mm, providing a practical space for users. The product is composed of various components, including a sturdy framework, wall panels, essential accessories, electrical materials, etc., all prefabricated to ensure quick installation and reliable performance.
The top frame of the framework is made of 1.0mm galvanized steel plate with paint, offering good corrosion resistance and durability.
Wall panels adopt 0.21/12g and 0.21/2g color steel foam boards, which are lightweight and have thermal insulation properties.
The toilet is made of ceramics, ensuring easy cleaning and long service life.
The door is made of steel products with spray paint and a lock, providing security and stability.
Windows are made of plastic steel with double - layer hollow tempered glass, offering good insulation and transparency.
The framework is prefabricated as a whole in the factory, ensuring precise assembly and structural stability. The bottom frame is also factory - prefabricated with external 1.0mm galvanized steel plate with paint, enhancing the overall firmness.
The artificial marble floor, with a specification of 2120×1355×15mm, is durable and easy to maintain.
It has a dry - wet separation design with a glass sliding door (aluminum alloy frame) as a partition, keeping the interior clean and tidy.
Equipped with necessary accessories such as bathroom cabinets (rock board material, including drain and single cold tap), shower (stainless steel), water pipes (PVC/PPR, including inlet and outlet), etc., meeting daily use needs.
Electrical materials comply with national standards (1.5 square + 25 square) and are equipped with round ceiling lights, ensuring safe and convenient electricity use.
Check all components according to the configuration list to ensure that there are no missing or damaged parts. Prepare necessary installation tools.
Install the prefabricated top frame and bottom frame first. The top frame and bottom frame are prefabricated as a whole, so they can be placed in the designated position directly.
Install the columns. The columns are formed by sheet metal, and they can be fixed to the top and bottom frames according to the marks.
Install the wall panels. The wall panels include those with specifications of 950×2040×50mm and 150×2040×50mm. Laminating is required during installation, and attention should be paid to the position of window holes (already processed).
Install the door and window in the corresponding positions. The door is a steel product with a lock, and the window is a plastic steel one with double - layer hollow tempered glass.
Install bathroom cabinets, showers, water pipes, etc. Connect the water inlet and outlet pipes correctly to ensure smooth water flow.
Install electrical materials. Connect the wires according to the national standard to ensure safe electricity use, and install the round ceiling light.
After the installation is completed, check all parts to ensure that they are firmly installed and function properly.
Construction Sites: Provide convenient sanitary facilities for construction workers.
Outdoor Events: Such as concerts, sports meetings, etc., to meet the temporary sanitary needs of participants.
Parks and Scenic Spots: As public toilets to improve the service level of the scenic spot.
Temporary Residential Areas: For temporary residents to use.
The total mass of the complete set is 380kg.
Full container: Overall packaging with a specification of 2270×1505×2255mm, 7.6m³, including 5cm outlet pipe length.
20HQ: Bulk loading, flat packaging, with 9 sets.
40HQ: Bulk loading, flat packaging, 18 sets; full container loading, finished product transportation, 7 sets.
The floor is made of artificial marble, which is smooth and easy to clean.
The wall panels are color steel foam boards with certain thermal insulation properties, but in extremely cold areas, additional insulation measures may be required according to the actual situation.
