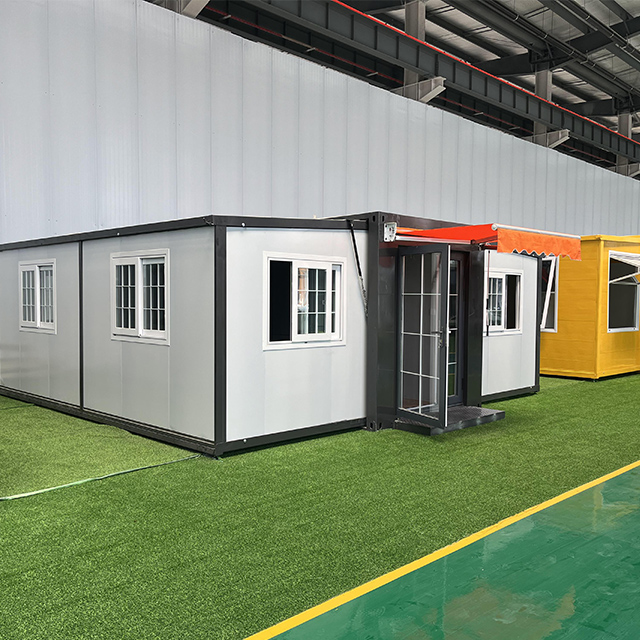

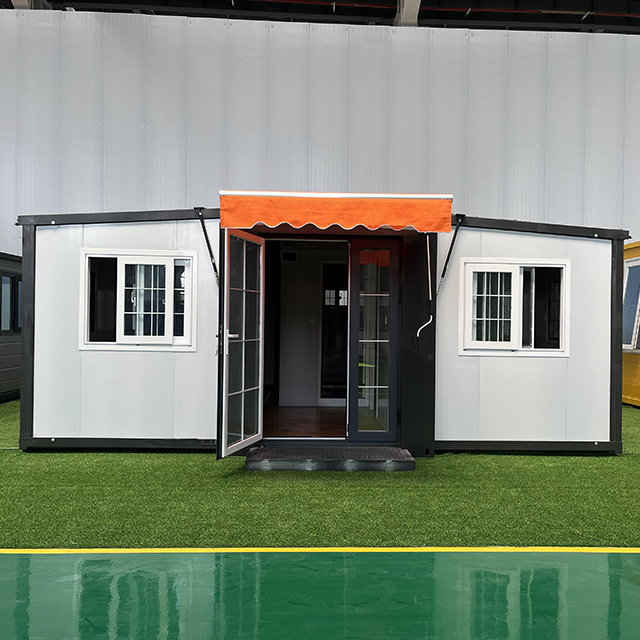

The 20ft Expandable Container House is a space-efficient solution that combines the mobility of standard containers with expandable functionality. Based on a 20ft (6058×2438×2591mm) base structure, it can be expanded horizontally to nearly double its internal area, reaching approximately 24-30㎡ after expansion. The frame uses 2.2mm galvanized steel for durability, while the walls and roof integrate insulation materials to maintain a comfortable internal environment. This product is ideal for scenarios requiring flexible space adjustment, balancing transportation convenience and living/working area.
The side panels can be smoothly extended, transforming from a compact 20ft container into a spacious living/working area without complex tools.
When collapsed, it fits standard container transportation dimensions, reducing logistics costs; expanded, it provides ample space for various uses.
The main structure adopts galvanized steel beams (frame height 160mm) and rock wool sandwich panels (50mm thickness), ensuring stability and thermal insulation.
| Overview (Thickness, size, ingredients can be customized according to customer needs) | 1. The weight of an expansion box is about 2.7 tons. 2. The ground load of the expansion box is 1.5KN. 3. The unfolded area is about 37.288㎡. 4. A 40-foot high container can hold 2 sets. | Picture | |

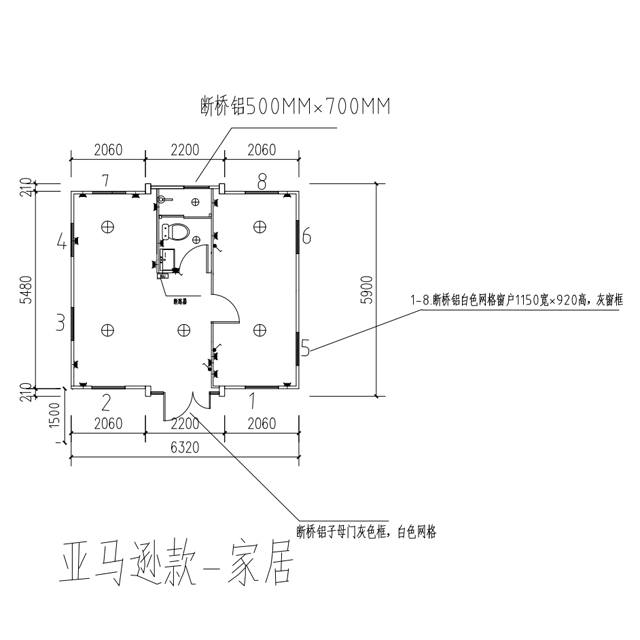

| Dimensions (L*W*h) | Expanded external dimensions: 5900*6320*2480mm |
| |
 Expanded inner dimensions: 5640*6160*2240mm | |||
| Folding size: 5900*2200*2480mm | |||
| structure | Main profiles -- frame square tube | Middle top shot: main beam 80*100*2.5mm, section height 140mm; secondary beam mouth 40*40*1.2mm | |
| Edge top P-type tube + 40*80 square tube | |||
| Middle bottom shot: main beam 80*100*2.5mm, secondary beam mouth 60*40*1.5mm | |||
| Side and bottom shot: main beam opening 80*60*2.0, secondary beam opening 60*40*1.5 | |||
| Column: 105*150*2.0 | |||
| Structural connections | M10*100 high-strength bolts, 4 bolts are installed on each corner piece | ||
| Surface treatment | Galvanized substrate, surface powder spraying process | ||
| Wall Panels | Potato core material | The thickness of the external wall color steel integrated board is 75mm; the double-sided pure flat board, the core insulation EPS board, the bulk density is 12-14kg/m³, and the combustion performance is Class B flame retardant; the internal wall is 50mm, double-sided pure flat board, the core insulation EPS board, and the surface coating steel plate thickness is 0.3mm inside and outside | |
| Roofing | Roof waterproofing layer | Color white gray, structural adhesive waterproof | |
| Insulation layer | Glass wool felt insulation layer, 75mm thick, single-sided aluminum foil, bulk density 12kg/m³, combustion performance is Class A non-combustible | ||
| Decorative layer | 20-strip ceiling board, 0.3mm, white-gray color | ||
| ground | Structural panels | The two wings are made of building formwork, and the middle main body box is made of cement fiberboard, both with a thickness of 18mm | |
| Ground handling | 1.6mm thick environmentally friendly PVC floor | ||
| Door | Entrance door | Aluminum alloy glass double door | |
| Bedroom door | 2 sets of steel door sets (white and gray), size W970mm*H1970mm, handle door lock | ||
| Integrated bathroom | custom made | Bathroom facilities, including sanitary ware, doors, lights, wiring, pipes; dry and wet separation, ceramic tile + floor leather (shower room ceramic tile, floor leather outside) small window in the bathroom | |
| window | External windows | Aluminum alloy, 5+9+5mm thick insulating glass with screen, 4 sets, Ford blue coating | |
| electric | lamp | LED * 5 sets | |
| Sockets, switches | 10A five-hole socket × 8, 16A air conditioning socket × 3, single-button switch × 3, weak current *1 | ||
| Distribution box, connector | Concealed distribution bo*32A*2; industrial plug 110V, 60Hz | ||
| Wiring | Household line: 2*6 square + 1*1.5 square, air conditioning socket: 2*4 square + 1*1.5 square, five-hole socket: 2*2.5 square + 1*1.5 square, lighting: 2*1.5 square, all with sheathed pipe | ||
| Foot line | Top and bottom line | ||
| cupboard | Standard cabinet: 2200*600*850mm | ||
| Hydraulic rod | 1 set of 4 | ||
| Base | 1 set of 6 | ||
Temporary offices for construction projects
Mobile clinics and medical stations in remote areas
Pop-up stores and commercial kiosks at events
Temporary housing for tourism resorts or campgrounds
Transport and Placement: Lift the collapsed container to the installation site using a forklift or crane, ensuring it is placed on a flat, stable foundation.
Expansion Process: Unlock the side locks, pull out the expandable panels, and secure them with the provided support brackets and hexagon screws (60×100mm).
Sealing and Fixing: Use structural adhesive to seal the gaps between expanded panels and the main frame, preventing water leakage.
Interior Assembly: Install internal fixtures such as flooring, windows, and doors according to the instruction manual, using self-tapping screws (100mm) for fixation.
Q: What is the maximum wind resistance of the expanded house?
A: It can withstand wind speeds up to 100km/h when properly installed with all supports fixed.
Q: How to maintain the expandable mechanism?
A: Regularly clean and lubricate the sliding rails to ensure smooth expansion; check for rust and apply anti-corrosion paint if needed.
Q: Is it possible to stack multiple units?
A: Stacking is not recommended for expanded units, but collapsed 20ft containers can be stacked up to 3 layers under proper support.
