1. Easy to transport, especially suitable for temporary dormitories of units that frequently change construction sites.
2. Made of galvanized steel, it is strong and durable, with strong earthquake resistance and deformation resistance.
3. Good sealing performance, strict manufacturing process makes this mobile house have good water tightness.
4. Convenient disassembly and assembly, superior performance, stable and firm, waterproof, fireproof and anti-corrosion.
5. Light weight, the house is an integral structure, can be moved anytime and anywhere, and its service life can reach more than 15 years.
6. Low-cost, customizable, prefabricated modular homes.
Technical Parameters
| 一、Product Description | ||||||
| 1 | Product Specifications | Standard size: L5950×W3000×H2800 | ||||
| 2 | Product color | White frame whiteboard | ||||
| 3 | Parameters | Design life: 10 years Wind resistance: 0.50kN/㎡ | ||||
| Sound insulation performance: sound insulation ≥ 20dB Fire performance: Class A | ||||||
| Drainage method: free drainage of beams on both sides Earthquake resistance: 8 levels | ||||||
| Ground live load: 2.0kN/㎡ Roof live load: 1.0kN/㎡ | ||||||
| 4 | Scenario Application | Workers' dormitories, housing, offices, warehouses, utility rooms, garages, shops, online celebrity markets, toilets, camping sites, etc. | ||||
| 二、Material parameter description (Thickness, size and ingredients can be customized according to customer needs) | ||||||
| Project | Materials | Dimensions | Unit | Quantity | Picture | |

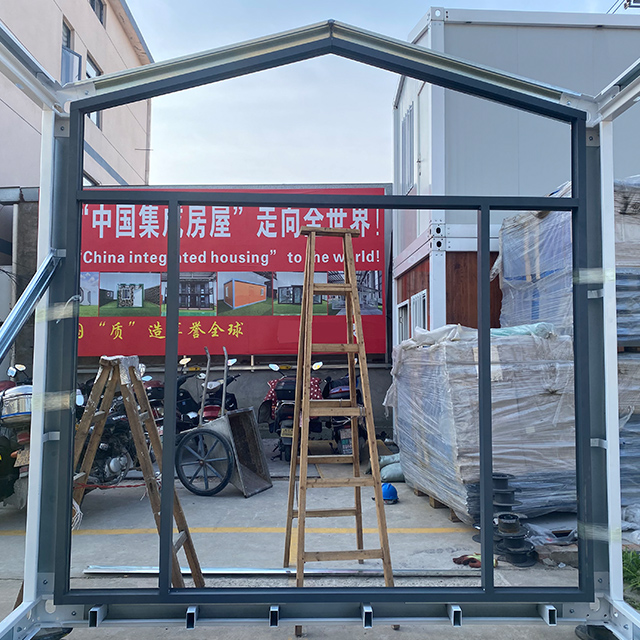

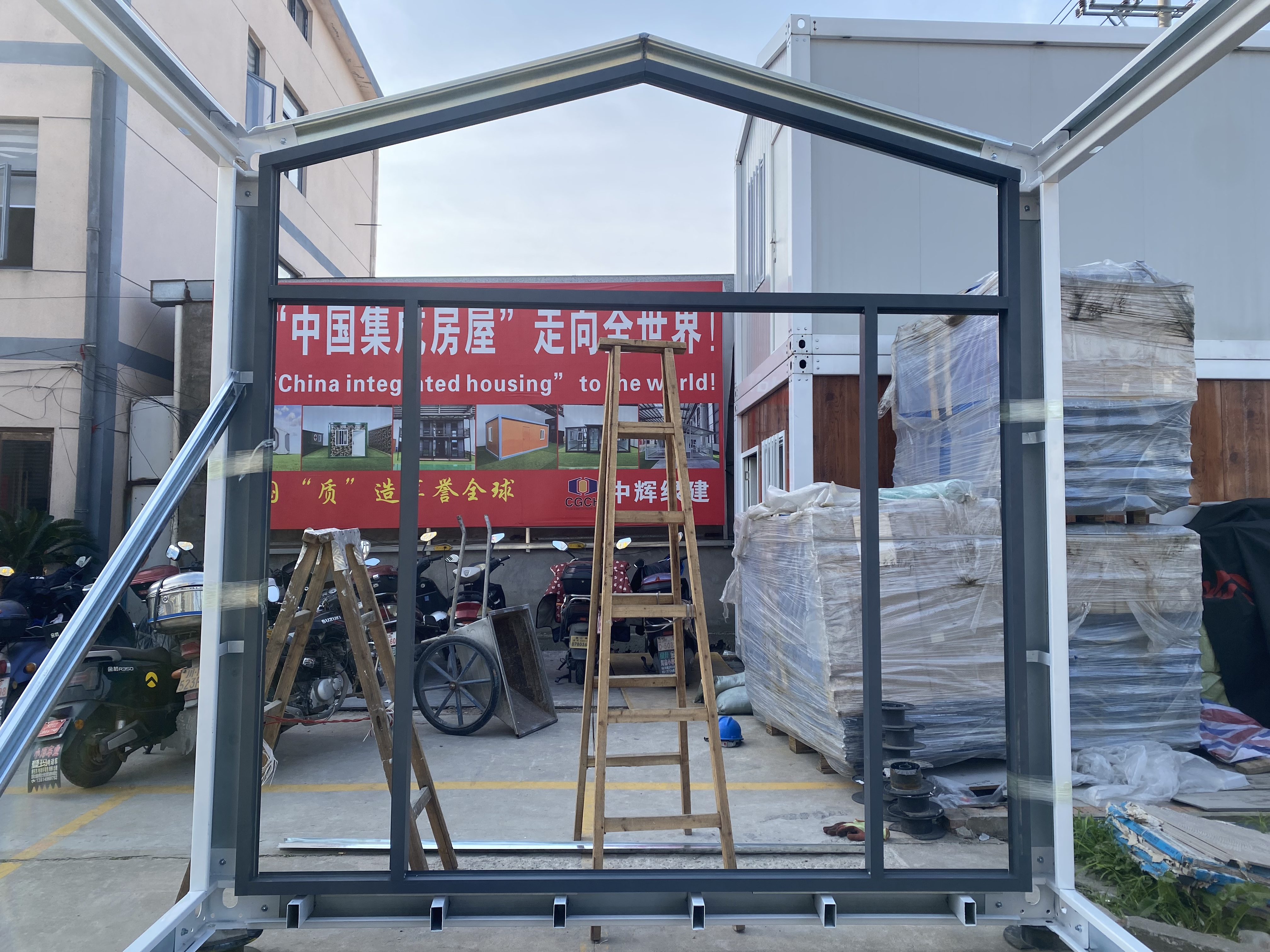

| 1 | Main frame | Top frame | Top beam: 2.0mm galvanized steel beam, top frame height 160mm, L=5630mm | branch | 2 |
|
| Herringbone top short beam: 2.0mm galvanized steel beam, top frame height 160mm, L=2680mm | branch | 2 | ||||
| Bottom frame | Bottom beam: 2.0mm galvanized steel beam, top frame height 160mm, L=5630mm | branch | 2 | |||
| Bottom short beam: 2.0mm galvanized steel beam, top frame height 160mm, L=2680mm | branch | 2 | ||||

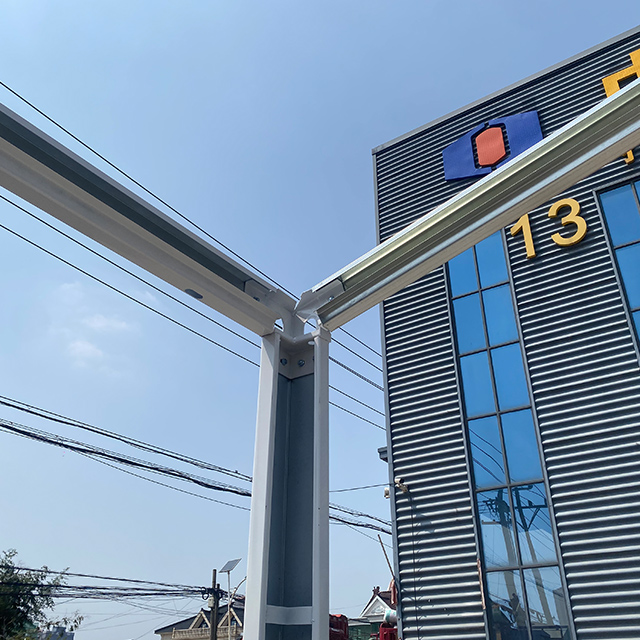

| Column | Column: 2.0mm galvanized steel column 160mm*160mm, L=2480mm | branch | 4 | |||
| Corner | 160mm*160mm, wall thickness 3.5mm | indivual | 4 | |||
| Bevel head | 160mm*160mm, wall thickness 3.5mm | indivual | 4 | |||
| 2 | Spray paint | Electrostatic spraying, plastic spraying, no fading for 5 years | set | 1 | ||
| 3 | 50 Platen Slots | Special-shaped profile, thickness 0.8mm, 5630mm | branch | 2 | ||
| Special-shaped profile, thickness 0.8mm, 2680mm | branch | 2 | ||||
| 4 | Square tube system | Chassis purlin | 50*100*3000mm galvanized square tube, thickness 1.0mm | branch | 9 | |
| 20*20*2780mm galvanized square tube, thickness 1.0mm | branch | 2 | ||||
| 50*50*2780mm galvanized square tube, thickness 1.0mm (single-sided card) | branch | 2 | ||||
| Top purlin | 50*50*2780mm galvanized square tube, thickness 1.4mm/1.43mm, triangular beam | branch | 2 | |||
| 40*40*1870mm galvanized square tube, thickness 1.0mm | branch | 14 | ||||
| 40*40*1820mm galvanized square tube, thickness 1.0mm | branch | 4 | ||||
| Door frame column | 20*40*2550mm galvanized square tube, thickness 0.8mm | branch | 1 | |||

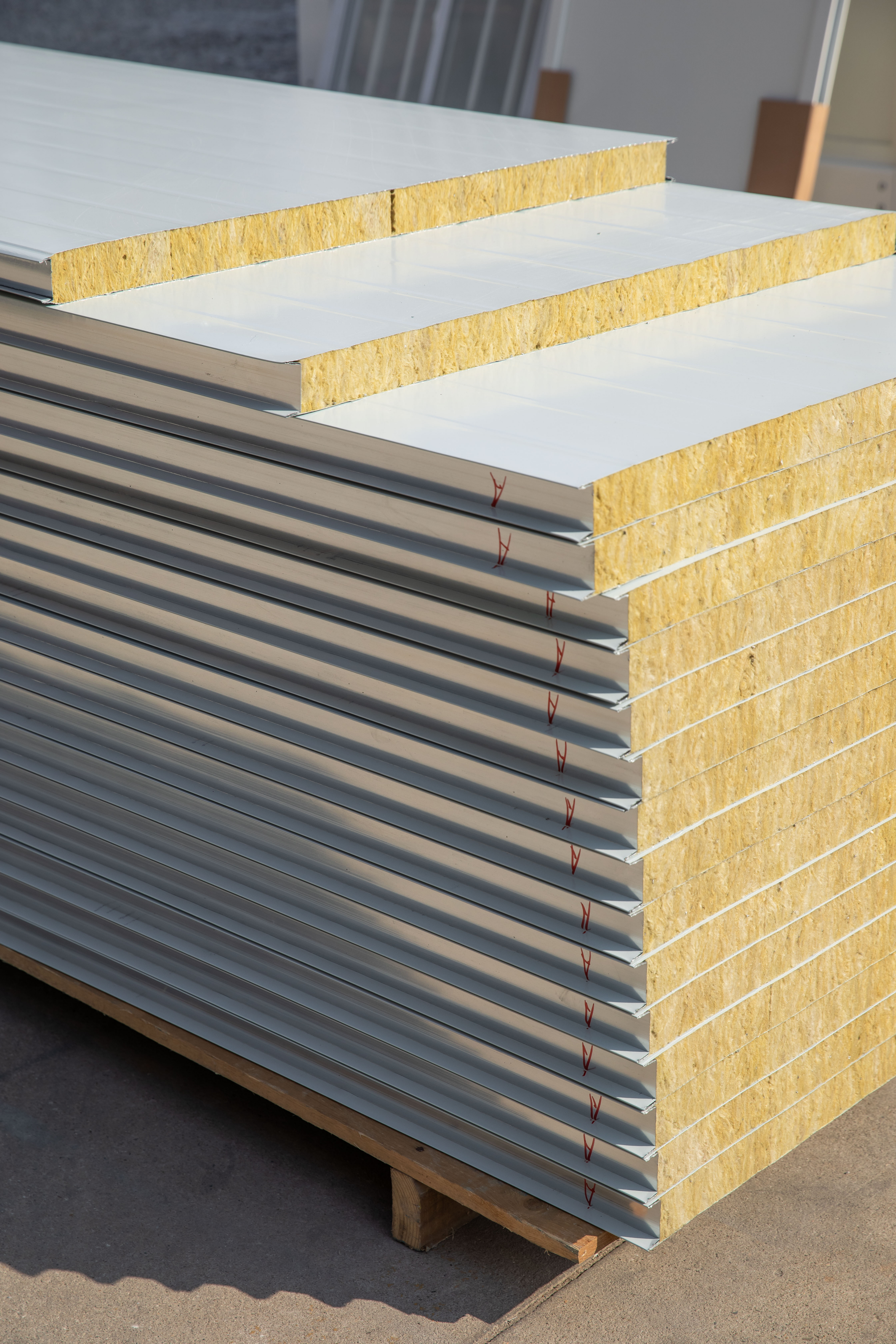

| 5 | Wall Panels | Rock wool sandwich panel | 3050*950*50mm 950 type, double-sided iron sheet 0.25mm | piece | 6 | |
| 6 | 2555*950*50mm 950 type, double-sided iron sheet 0.25mm | piece | 9 | |||
| 7 | Window panels | 1840*950*50mm 950 type, double-sided iron sheet 0.25mm | piece | 1 | ||
| 8 | 1360*950*50mm 950 type, double-sided iron sheet 0.25mm | piece | 1 | |||
| 9 | Ground Floor | 1.8mm cement sanding board, 1147mm*2795mm, 1 year warranty | open | 5 | ||

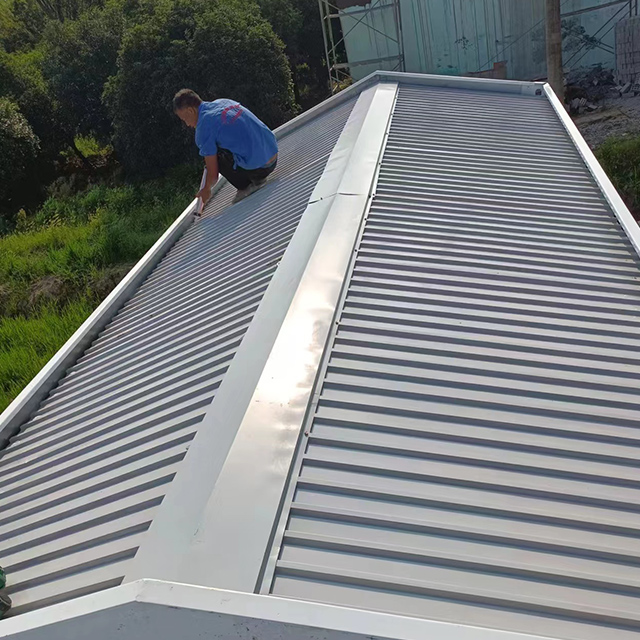

| 10 | Roof tiles | 980 roof tile, thickness 0.38mm, 1530mm | open | 12 | ||
| 11 | Ceiling tiles | 980 ceiling tile, thickness 0.19mm, 2770mm | open | 6 | ||
| 12 | Ridge tiles | 980 ridge tile, thickness 0.19mm, 3050mm | open | 2 | ||
| 13 | Angle Aluminum | 2520mm | indivual | 4 | ||
| 14 | 2770mm | indivual | 2 | |||
| 15 | 5720mm | indivual | 2 | |||
| 16 | 50 plastic steel window | Plastic steel window with anti-theft function, single glass, 925*1200mm | indivual | 2 | ||
| 17 | 50 steel door | 925*1970, integrated door with frame (handle lock), steel plate 0.3mm | set | 1 | ||
| 18 | Insulation cotton | 50mm glass fiber insulation cotton | roll | 1 | ||
| 19 | Hardware accessories | Carriage screw | branch | 64 | ||
| 20 | 70*100 | indivual | 18 | |||
| 21 | Self-tapping screw 25 | indivual | 150 | |||
| 22 | Small white nail | indivual | 200 | |||
| 23 | Wooden board nails 4.8*38 | indivual | 65 | |||
| 24 | Flat head nail 4.8*70 | indivual | 20 | |||
| 25 | Pimp | indivual | 1 | |||
| 26 | Lock | indivual | 1 | |||
| 27 | Glue | indivual | 3 | |||
1. Widely used for temporary housing in construction sites;
2. Can be used for creative markets in shops, and the shape can be customized;
3. Can be used as a small garage, utility room, and storage room in life.
4. Simple and movable temporary offices and security booths can be used.
5. It is a temporary building for large-scale entertainment events and can be assembled quickly and efficiently.
1. How big is the internal area of a standard container house? Internal space size?
A: The area is 15.9 square meters, with an internal width of 2.78 meters, an internal length of 5.73 meters, and an internal height of 2.48 meters.
2. Is the color changeable and customizable?
A: Yes, there are color cards to choose from, and you can choose according to your preferences, with an additional fee.
3. What material is the standard container made of? Can the material be thickened?
A: The frame is galvanized steel, the wall panels are fireproof rock wool boards, the column is up to 3.0 meters high, and the maximum thickness of the frame can be 3.0mm.
4. Are there any requirements for the foundation?
A: A flat ground is fine, and a flat brick pad is also fine.
