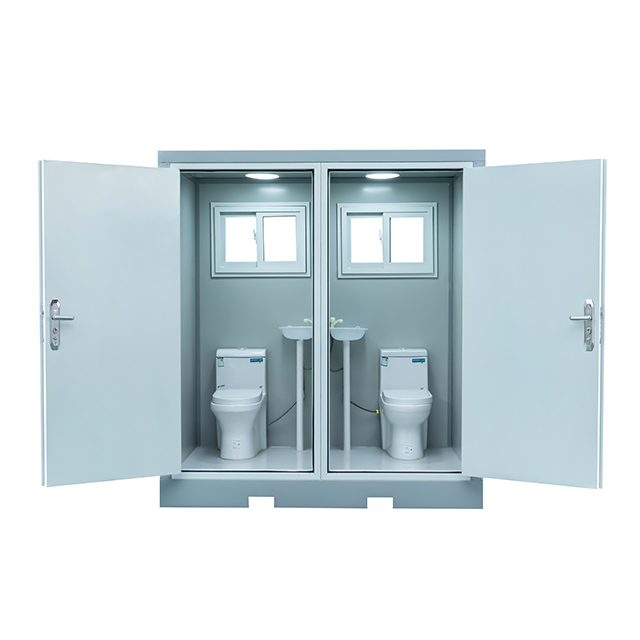

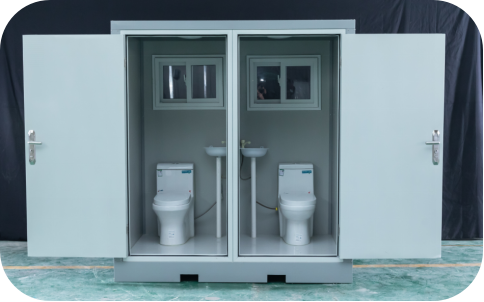

The Prefab Double Toilet Configuration is a prefabricated double-toilet unit designed for efficient and convenient use in scenarios requiring simultaneous use by multiple individuals. It has external dimensions of 1585*1485*2255mm and internal dimensions of 1920*1070*2000mm, providing sufficient space for two users. The complete set weighs 320kg, making it easy to transport and install. This unit is fully prefabricated in the factory, with all components pre-assembled to the greatest extent, ensuring quick on-site installation and immediate usability upon setup.
The frame is constructed from 1.0mm galvanized steel plate with a painted finish, featuring a specification of 2070*1220*75mm, supplied as 1 set, fully prefabricated in the factory, ensuring precise dimensions and structural stability. The galvanized layer and paint coating work together to enhance corrosion resistance, suitable for various indoor and outdoor environments.
Columns are made of 1.0mm galvanized steel plate with paint, with a specification of 75*75*2000mm, totaling 4 branches. Formed by sheet metal processing, they offer strong load-bearing capacity to support the entire structure. The uniform manufacturing process guarantees consistent quality across all columns.
The bottom frame includes an external 1.0mm galvanized steel plate with paint, specified as 2070*1220*190mm, 1 set, and is entirely prefabricated in the factory. Internally, it features 40*40*1.2 galvanized square tube welding for added reinforcement, along with an artificial marble floor of 1920*1070*15mm that is wear-resistant and easy to clean.
Approximately 2 pieces of 0.21/12g color steel foam board, each with a specification of 950204050mm, are used for lamination. The foam core provides basic thermal insulation, while the color steel surface offers durability and a neat appearance.
2 pieces of back wall panels, also made of 0.21/12g color steel foam board with a specification of 950*2040*50mm, have their film and window holes pre-processed and formed in the factory, reducing on-site modification work.
1 piece of partition board, constructed from 0.21/12g color steel foam board with a specification of 950*2000*50mm, is used for lamination, effectively separating the two toilet compartments while maintaining the same material consistency as other wall panels.

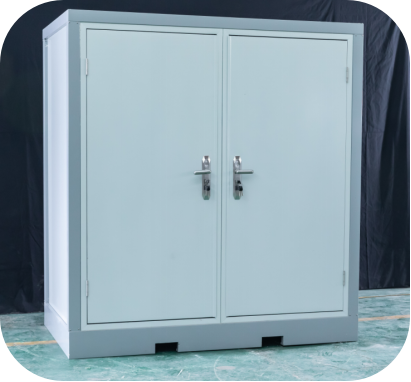

2 sets of steel doors, each with a specification of 2000*985*50mm, are spray-painted for corrosion resistance and equipped with locks to ensure user privacy. The doors are designed for smooth opening and closing.

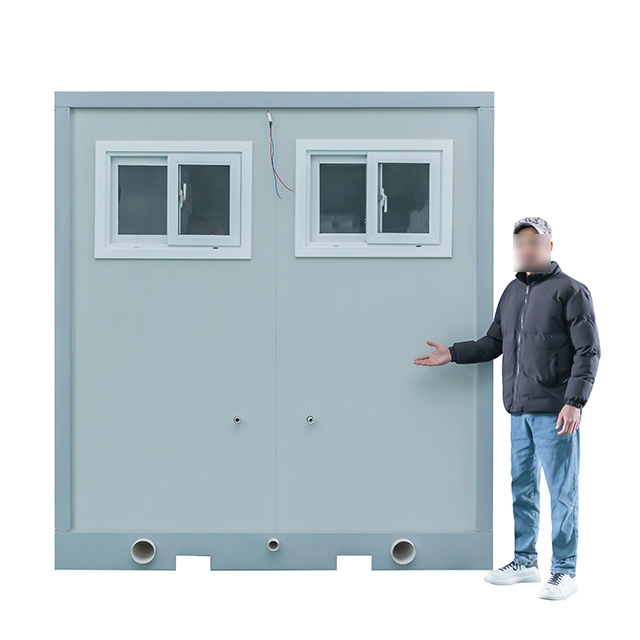

2 sets of plastic steel windows, specified as 550*740*50mm, feature double-layer hollow tempered glass, which provides good sound insulation and thermal insulation, while the tempered glass enhances safety.

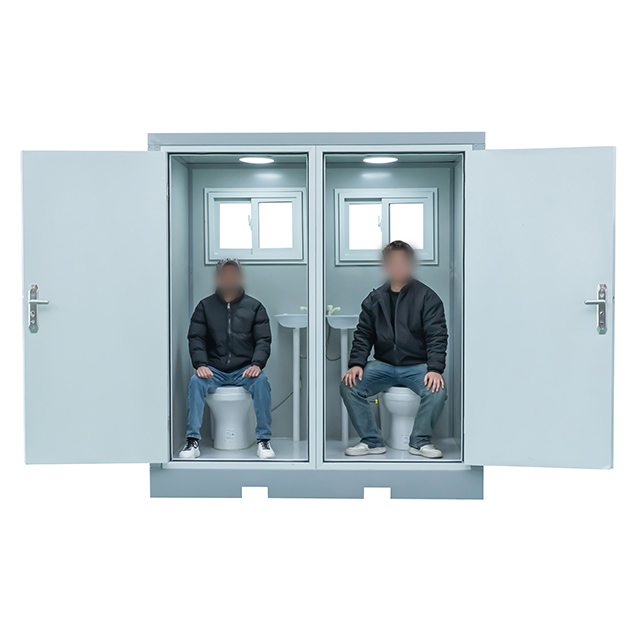

2 sets of ceramic toilets, with a specification of 870*340*720mm and down drainage, offer a comfortable seating experience and are easy to clean, with a smooth ceramic surface that resists stains.
2 sets of PVC triangle basins, each with a specification of 290*290*110mm, include a drain and faucet. The triangular design saves space, and the PVC material is lightweight and corrosion-resistant.
1 set of water supply and drainage components, made of PVC/PPR with specifications 25/50/110, includes water inlet and outlet pipes that are corrosion-resistant and have good sealing performance to prevent leaks.
2 pieces of acrylic signage, each with a specification of 250*100mm, are self-adhesive with male and female logos, clearly indicating the toilet compartments for user convenience.
 Double toilet configuration list | ||||||||
| Dimensions：2070*1220*2255 | Internal Dimensions:1920*1070*2000 | Dimensions: Length (mm) * Width (mm) * Height (mm) | ||||||
| Serial number | Product Name | Material | Specification | Unit | Quantity | Remark | Picture | |
| 1 | Framework | Top frame | 1.0mm galvanized steel plate with paint | 2070*1220*75 | set | 1 | Factory prefabrication |
|
| Top plate 50EPS foam board | 2020*1070*50 | |||||||
| Column | 1.0mm galvanized steel plate with paint | 75*75*2000 | branch | 4 | Sheet Metal Forming | |||
| Bottom frame | External 1.0mm galvanized steel plate with paint | 2070*1220*180 | set | 1 | Factory overall prefabrication | |||
| Internal galvanized square tube welding | 40*40*1.2 | |||||||
| Artificial marble floor | 1920*1070*15 | |||||||
| 2 | Wall Panels | about | 0.21/12g color steel foam board | 1150*2040*50 | piece | 2 | Lamination | |
| Back wall panel | 0.21/12g color steel foam board | 950*2040*50 | piece | 2 | The film and window holes have been processed and formed | |||
| Partition Board | 0.21/12g color steel foam board | 1150*2000*50 | piece | 1 | Lamination | |||
| 3 | Accessories | Door | Steel | 2000*965*50 | set | 2 | Spray paint with lock | |
| window | Plastic steel | 550*740*50 | set | 2 | Double-layer hollow tempered glass | |||
| toilet | ceramics | 670*340*720 | set | 2 | Down Drainage | |||
| Triangle Basin | PVC | 290*290*110 | set | 2 | Including drain and faucet | |||
| Water Fee | PVC/PPR | 25/50/110 | set | 1 | Including water inlet and outlet | |||
| Signage | Acrylic | 250*100 | piece | 2 | Self-adhesive male and female logo | |||
| 4 | Electrical Materials | Choose one | National Standard | 1.5 square | set | 1 | With round ceiling light | |
| Solar | 250mm | set | 1 | No wiring required | ||||
| 5 | Cabinet volume | Full container | Overall packaging | 2070*1270*2255 | m³ | 5.93 | Including 5 cm outlet pipe length | |
| 20HQ | Bulk loading | 5850*2320*2500 | set | 12 | Prefabricated pallets, full pallet delivery | |||
| Full container loading | 2070*1270*2255 | set | 4 | Finished product transportation | ||||
| 40HQ | Bulk loading | 11850*2320*2500 | set | 22 | Prefabricated pallets, full pallet delivery | |||
| Full container loading | 2070*1270*2255 | set | 9 | Finished product transportation | ||||
| 6 | Weight | Complete Set | 2070*1220*2405 | kg | 320 | Overall total weight | ||
Users can choose between national standard electrical materials with 1.5 square wiring, 1 set, including a round ceiling light that provides sufficient illumination, or solar electrical materials with 250mm components, 1 set, which requires no wiring and is energy-saving, suitable for areas with sufficient sunlight.

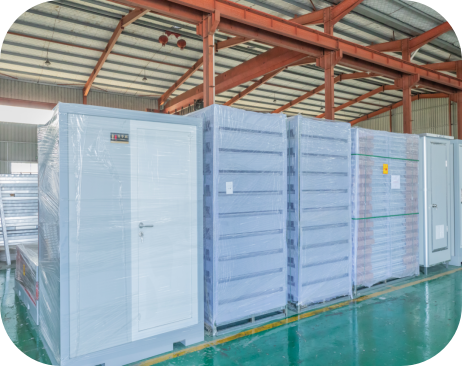

Full container: overall packaging with a specification of 2070*1270*2255mm, occupying 5.93 m³, including a 5cm outlet pipe length to facilitate connection during installation.
20HQ: bulk loading with a specification of 5850*2220*2500mm, capable of holding 12 sets, using prefabricated pallets for full pallet delivery; full container loading with a specification of 2070*1270*2255mm, holding 4 sets for finished product transportation.
40HQ: bulk loading with a specification of 11850*2320*2500mm, able to accommodate 22 sets, using prefabricated pallets for full pallet delivery; full container loading with a specification of 2070*1220*75mm, holding 9 sets for finished product transportation.
This prefab double toilet configuration is suitable for a variety of scenarios. On construction sites, it can meet the daily toilet needs of construction workers. At large-scale events such as concerts and sports meets, it can handle the concentrated flow of people. In tourist attractions, it provides convenient toilet facilities for tourists. In temporary residential areas, it offers a quick and hygienic solution for residents, ensuring that multiple people can use the toilet at the same time without long waits.
The unit is prefabricated in the factory, so on-site installation is relatively simple. First, prepare a flat and stable foundation at the installation site. Then, place the prefabricated components in the designated position using appropriate lifting equipment. Finally, connect the necessary water and electricity lines according to the instructions, ensuring that all connections are secure and leak-free.
When using the toilet and basin, avoid excessive force when pressing the flush button or turning the faucet to prevent damage to the ceramic or PVC components.
The doors and windows should be used gently, avoiding slamming, to ensure their long-term use and maintain the integrity of the locks and hinges.
For electrical components, follow the national standard or the instructions of the solar system when turning on/off the lights to avoid improper operation causing safety hazards such as short circuits.
Regularly check the water pipes, including the connections between pipes and faucets, for leaks. If leaks are found, repair or replace the faulty parts in time to prevent water waste and damage to the unit.
Clean the toilet, basin, and other sanitary facilities regularly using neutral detergents. Avoid using strong acidic or alkaline cleaners that may damage the ceramic or PVC surfaces.
Inspect the framework and wall panels for signs of damage such as deformation, rust, or cracks. Perform corresponding repairs or replacements if necessary to maintain the structural integrity of the unit.
