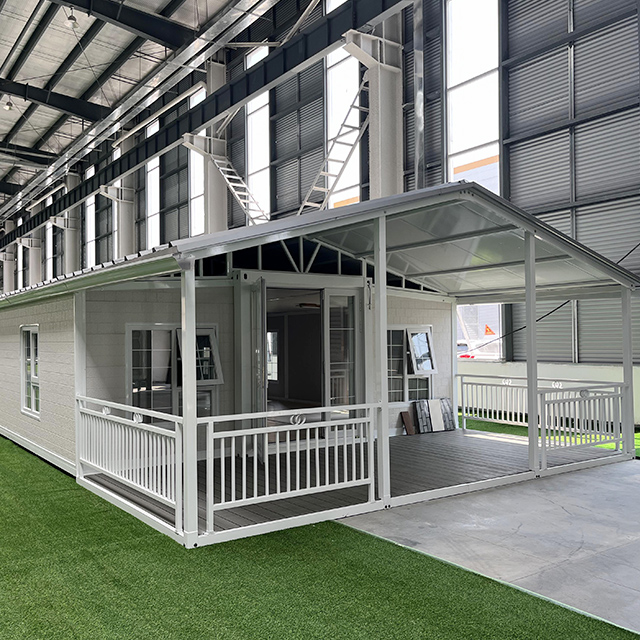

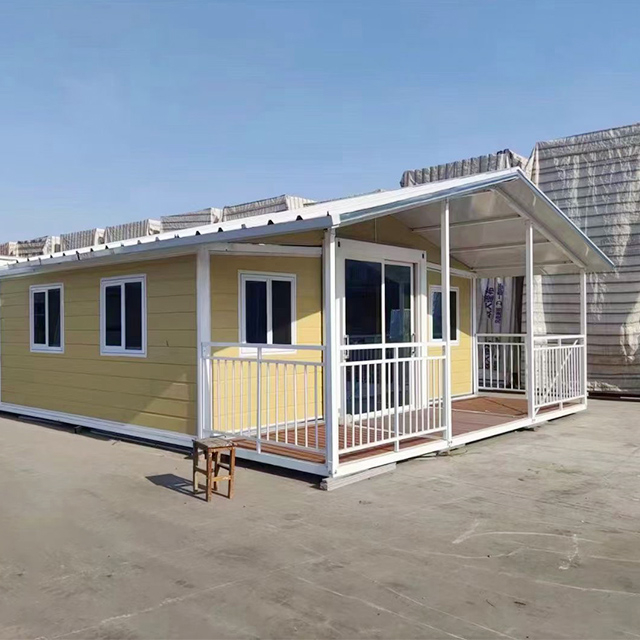

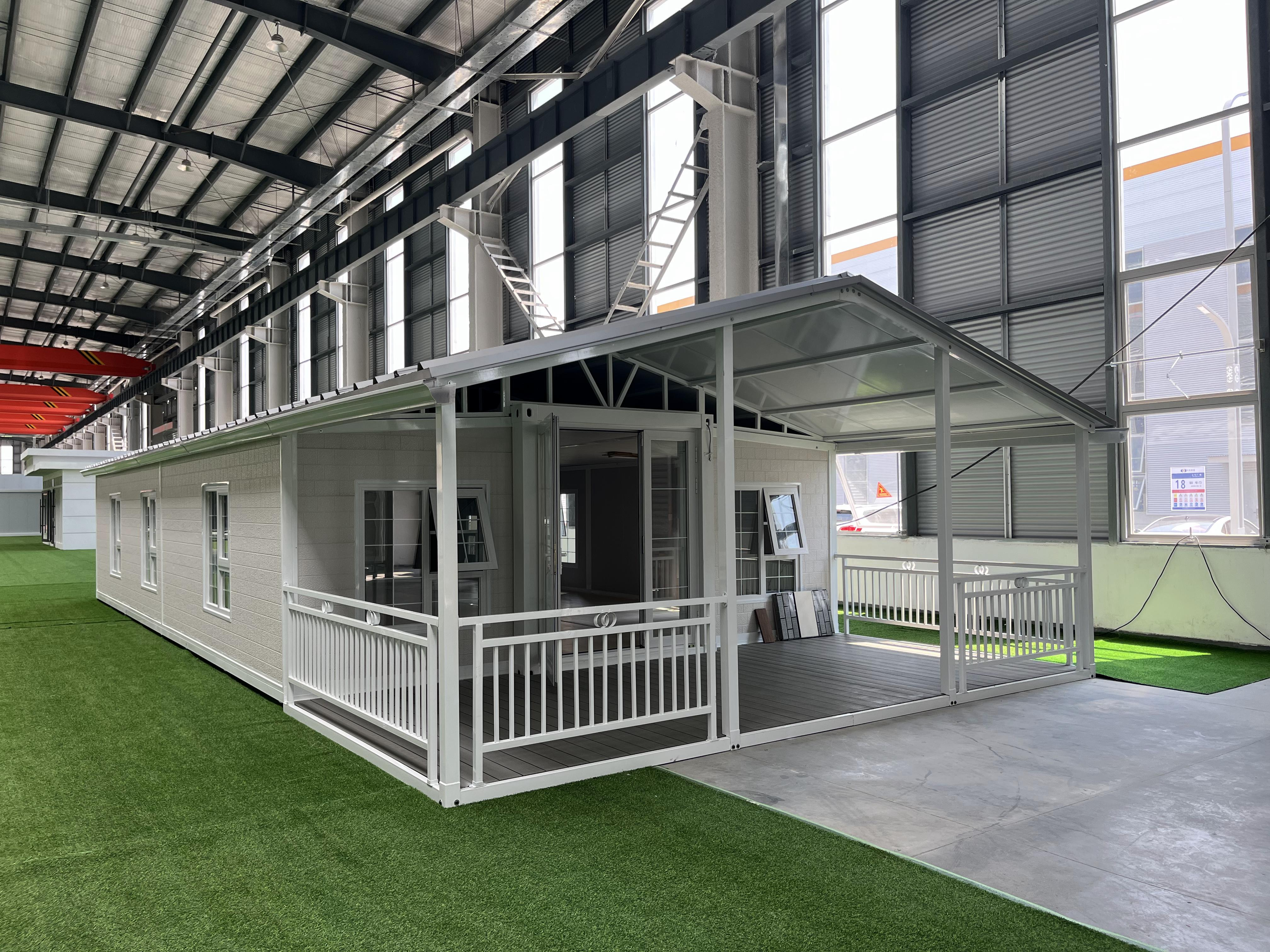

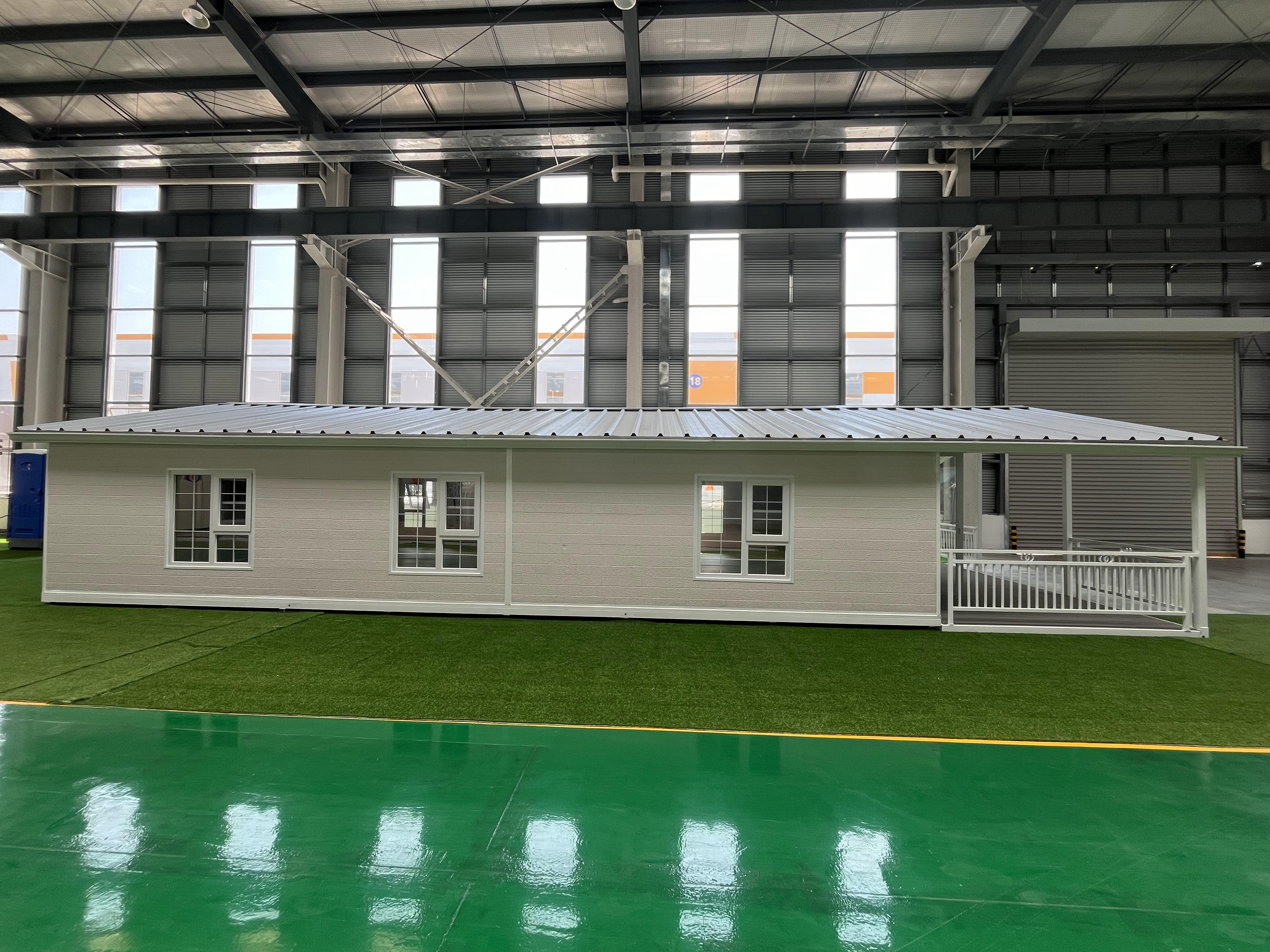

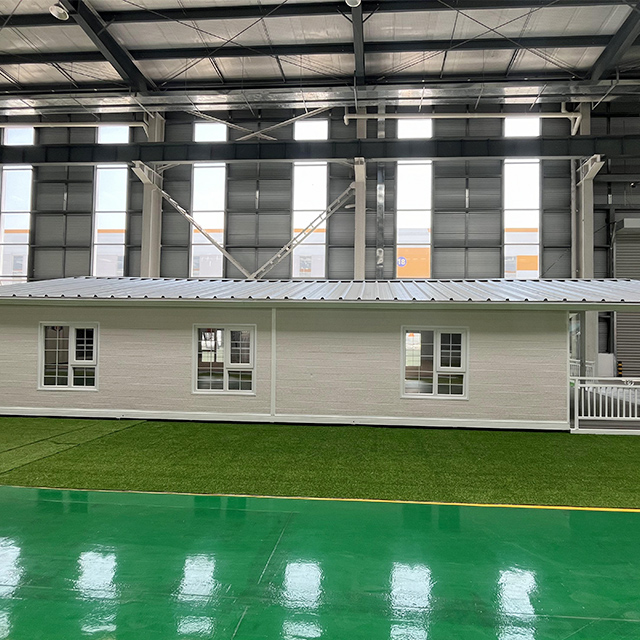

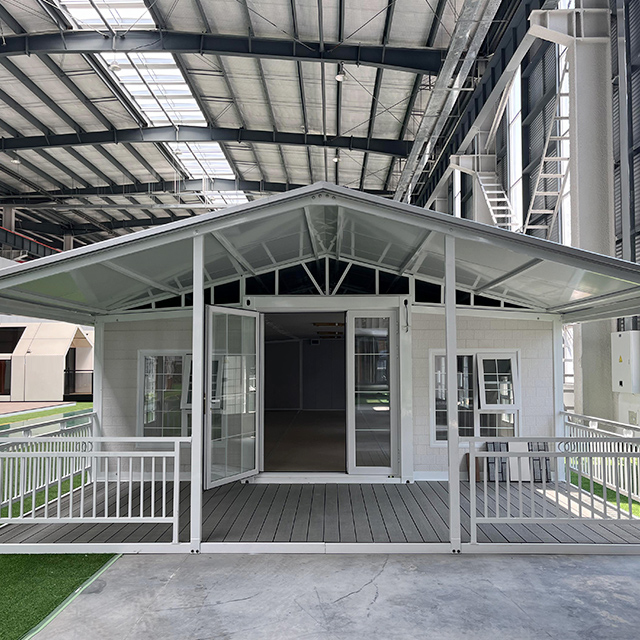

The 40ft Expandable Container House is a large-scale modular solution designed for medium to large space requirements. With a collapsed dimension of 12192×2438×2591mm (standard 40ft container), it can be expanded to an internal area of 48-60㎡, making it suitable for permanent or semi-permanent use. The structure features 2.2mm galvanized steel frames (top/bottom beams and columns) and enhanced insulation with 50mm glass fiber insulation cotton in the roof, ensuring durability and energy efficiency. It integrates multiple functional components, providing a versatile space for offices, residential, or commercial purposes.

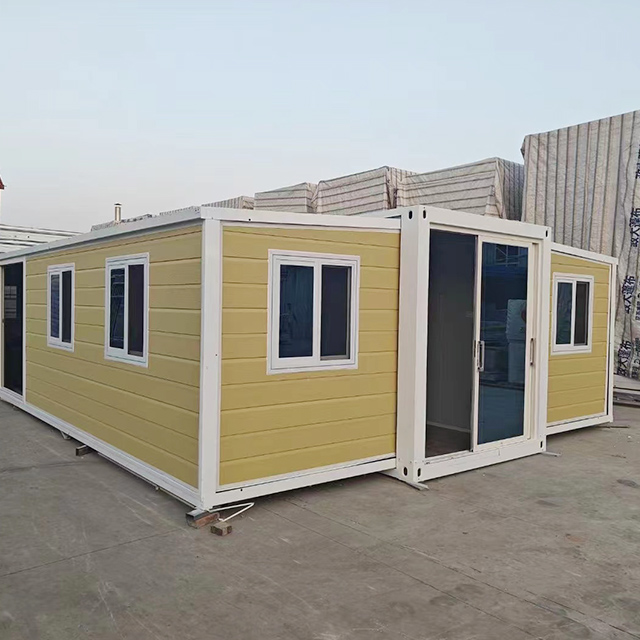

Expands from a 40ft container to a double or triple-area space, with a symmetrical expansion design ensuring balanced structure after deployment.
Roof tiles (0.38mm thickness, 2880mm length) and ceiling tiles (0.28mm thickness) are combined with glass fiber insulation cotton, reducing heat transfer and energy consumption.
The frame uses 2.2mm galvanized steel beams (L=5630mm for top/bottom beams) and reinforced columns, supporting multi-functional interior layout (e.g., partitioned rooms).
The expanded space allows for flexible partitioning, with pre-installed interfaces for electrical and plumbing systems to facilitate further customization.
| Overview (Thickness, size, ingredients can be customized according to customer needs) | 1. The weight of an expansion box is about 5.2 tons. 2. The ground load of the expansion box is 1.5KN. 3. The unfolded area is about 73.63㎡. 4. A 40-foot high container can hold 1 set. | Picture | |

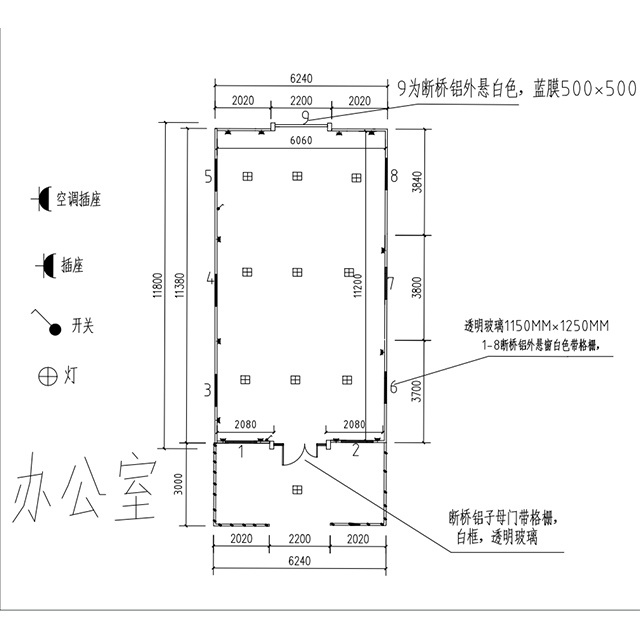

| Standard expansion box | Dimensions (L*W*h) | Expanded external dimensions: L11800*W6240*H2480 (2260) |
|
| Expanded inner dimensions: L11540*W6080*H2200 (2060) | |||
| Folding size: L11800*W2200*H2480 | |||

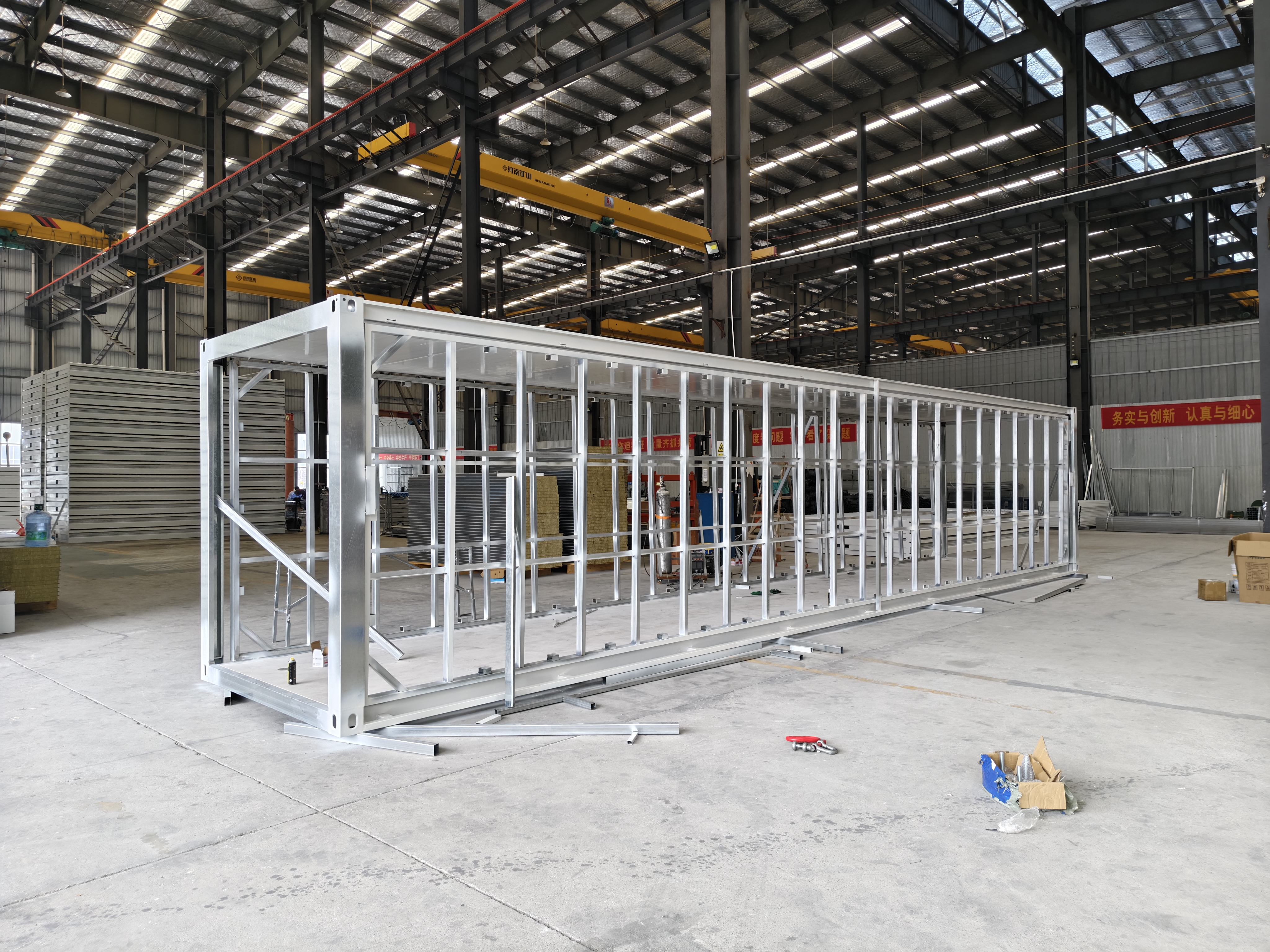

| structure | Main profiles -- frame square tube | 4 middle top and bottom beams: 80*140*3.5mm Q235B galvanized pipe. 4 middle columns: 150*190*2mm Q235B galvanized pipe | |
| 8 hanging heads: 150*190*160*6mmQ235B. 12 middle top purlins: 40*60*1.5mmQ235B | |||
| 20 middle bottom purlins: 40*80*1.5mmQ235B galvanized pipe. 4 side top frames: 40*80*1.5mmQ235B | |||
| 4 side bottom frames: 80*80 40*80*1.5mmQ235B galvanized pipe. 20 side bottom purlins: 40*60*1.5mmQ235B galvanized pipe | |||
| 4 upper waterproof guard plate folding parts: 2.5mm Q235B galvanized pipe. 4 lower waterproof guard plate folding parts: 2.5mm Q235B galvanized pipe | |||
| Structural connections | 4 side waterproof guard plate folding parts: 2.5mm Q235B galvanized pipe. 52 folding hinges: 130mm galvanized hinges | ||
| Surface treatment | Overall frame anti-corrosion coating: electrostatic spraying/direct white plastic powder | ||
| Wall Panels | EPS core material | The thickness of the external wall color steel integrated board is 75mm; the double-sided pure flat board, the core insulation EPS board, the bulk density is 12-14kg/m³, and the combustion performance is Class B flame retardant; the internal wall is 50mm, double-sided pure flat board, the core insulation EPS board, and the surface coating steel plate thickness is 0.3mm inside and outside. | |
| Roofing | Roof waterproofing layer | Color is white and gray, structural adhesive is waterproof, 50mm, core insulation EPS board, surface coating steel plate thickness is 0.3mm inside and outside. | |
| Insulation layer | Glass wool felt insulation layer, 50mm thick, single-sided aluminum foil, bulk density 12kg/m³, combustion performance is Class A non-combustible. | ||
| Decorative layer | 20-strip ceiling board, 0.3mm, white-gray color | ||
| ground | Structural panels | The two wings are made of building formwork, and the middle main body box is made of cement fiberboard, both with a thickness of 18mm. | |
| Ground handling | 1.6mm thick environmentally friendly PVC floor | ||
| Door | Entrance door | 1 set of high-end security door 970*1970 | |
| Bedroom door | 3 sets of steel door sets (white and gray), size W970mm×H1970mm, handle door lock | ||
| Integrated bathroom | custom made | Bathroom facilities, including sanitary ware, doors, lights, wiring, pipes; dry and wet separation, ceramic tile + floor leather (shower room ceramic tile, floor leather outside) small window in the bathroom | |
| window | External windows | Aluminum alloy, 5+9+5mm thick insulating glass with screen, 8 sets, Ford blue coating. (920*920) | |
| electric | lamp | LED × 12 sets, | |
| Sockets, switches | 6 sockets, 1 single socket, 6 ten-hole sockets, 2 air-conditioning sockets, 1 63A leakage protector, 4 32A leakage protectors, and national standard distribution box. | ||
| Distribution box, connector | Concealed distribution box 32A×2; voltage 220V, 50HZ | ||
| Wiring | Household line: 2*6 square + 1*1.5 square, air conditioning socket: 2*4 square + 1*1.5 square, five-hole socket: 2*2.5 square + 1*1.5 square, lighting: 2*1.5 square, all with sheathed pipe | ||
| Foot line | Top and bottom line | ||
| Hydraulic rod | 1 set of 4 | ||
| Base | 1 set of 6 | ||
Permanent or semi-permanent residential buildings in remote areas
Large-scale construction site dormitories and canteens
Community service centers and temporary schools
Exhibition halls and pop-up event venues requiring large space
Site Preparation: Ensure the foundation is firm (concrete or steel platform) to bear the expanded structure’s weight (approximately 5-8 tons).
Expansion Operation: Two teams work on both sides to unlock the expansion locks, slowly pull out the side modules, and secure them with ceiling angle aluminum (40×40×0.5mm) and supporting rods.
Structural Reinforcement: Connect the expanded modules to the main frame using m12×25 hexagon socket screws (32 pieces) and apply structural adhesive at joints.
Interior Finishing: Install flooring, electrical wiring, and plumbing according to design, using small white nails (4.2×16mm) for fixing lightweight components.
Q: How many workers are needed for expansion?
A: At least 4-6 workers to ensure safe and smooth expansion of the large modules.
Q: What is the service life of the expandable mechanism?
With proper maintenance, the expansion system can function reliably for 10-15 years.
Q: Can it be equipped with air conditioning and heating systems?
A: Yes, the pre-reserved holes and structural design allow for easy installation of HVAC systems.
